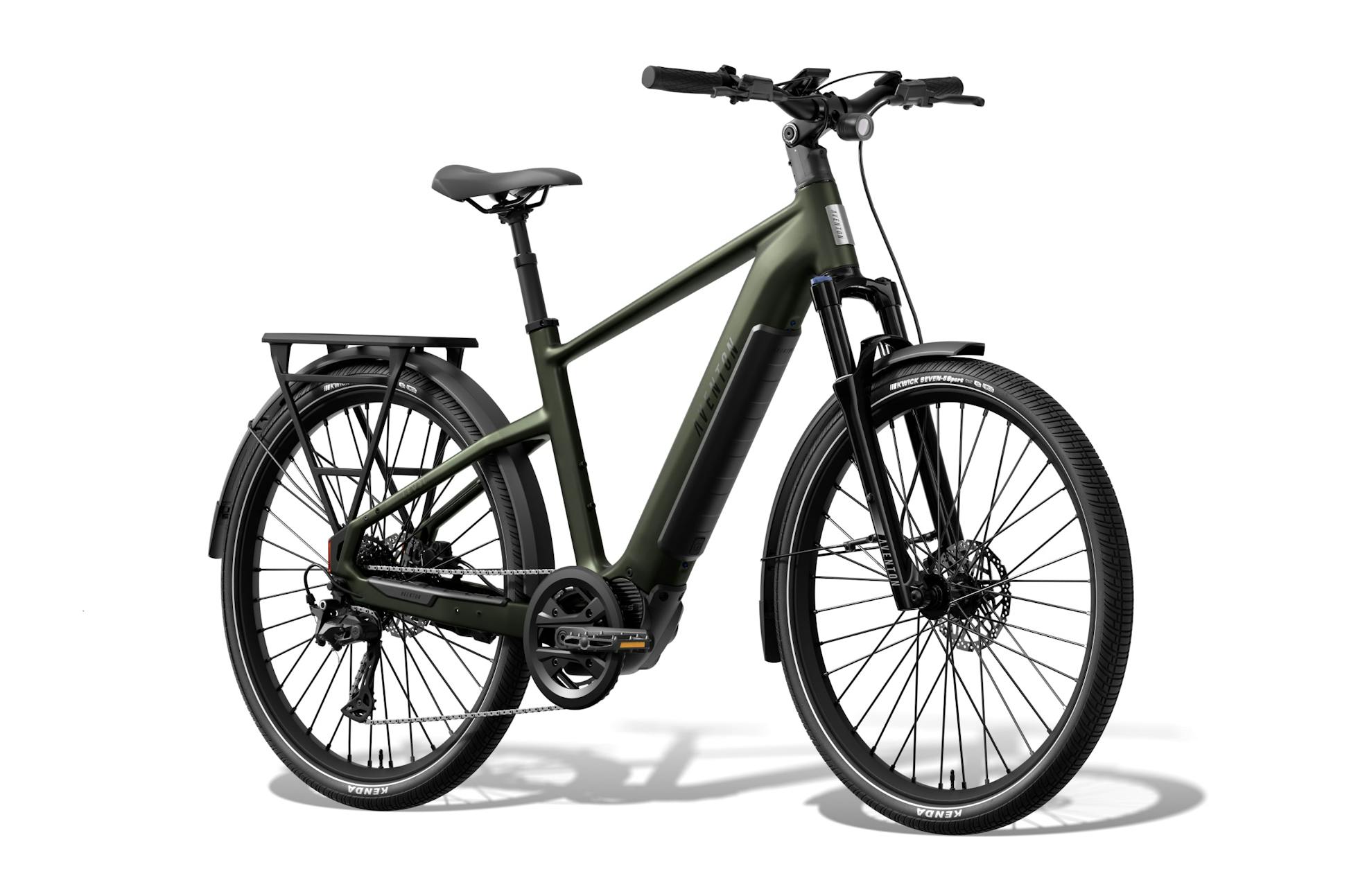

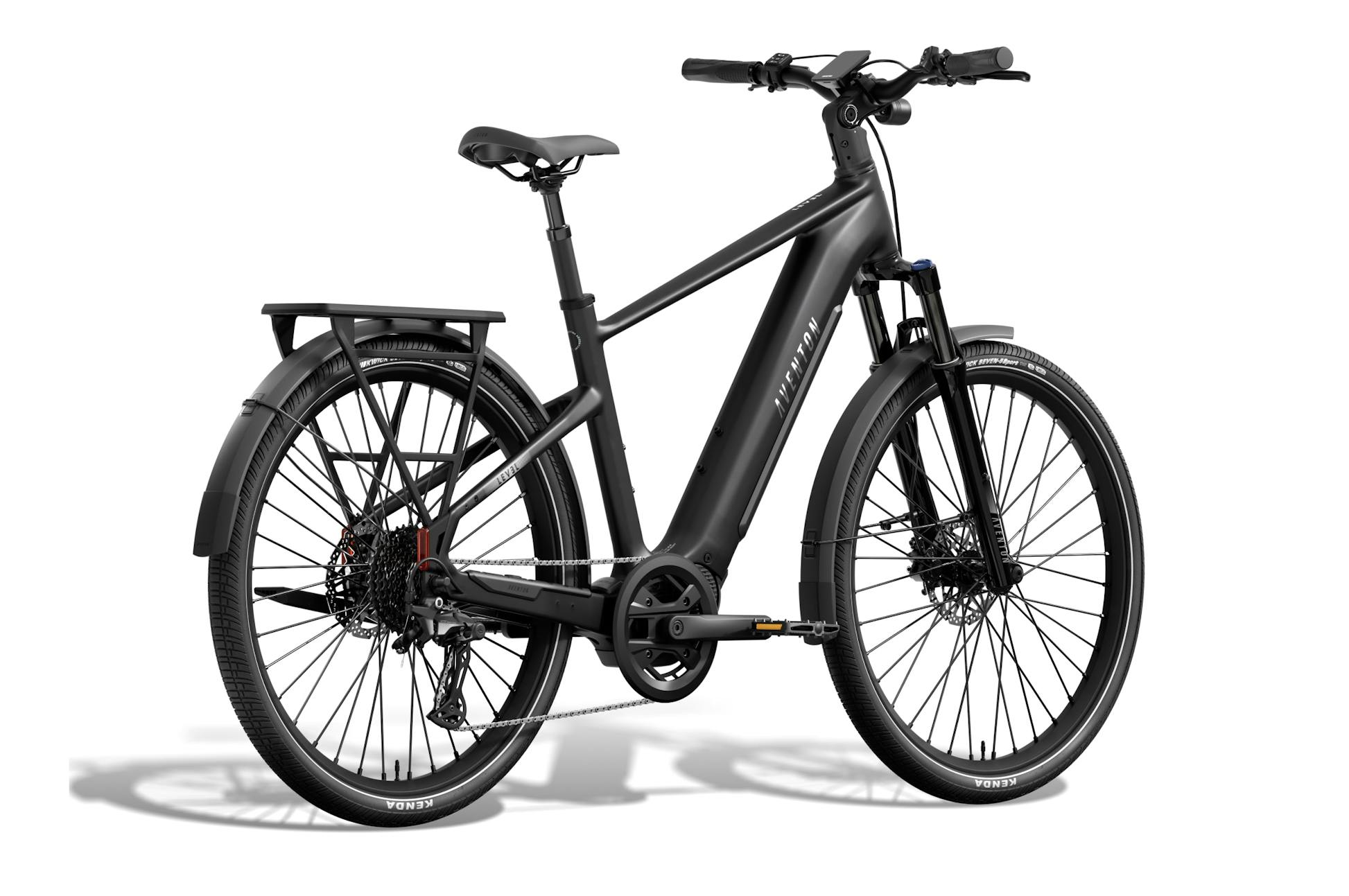

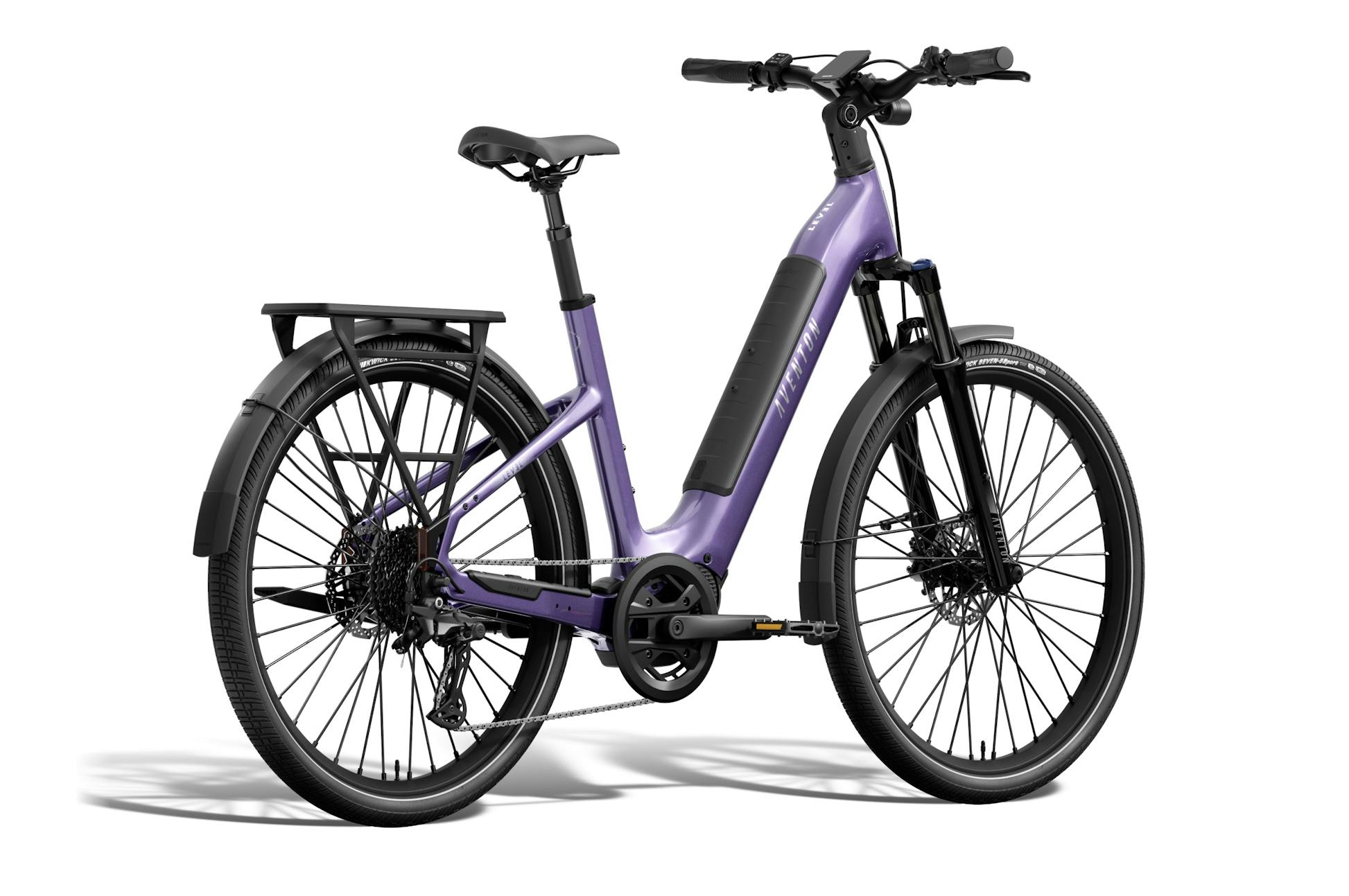

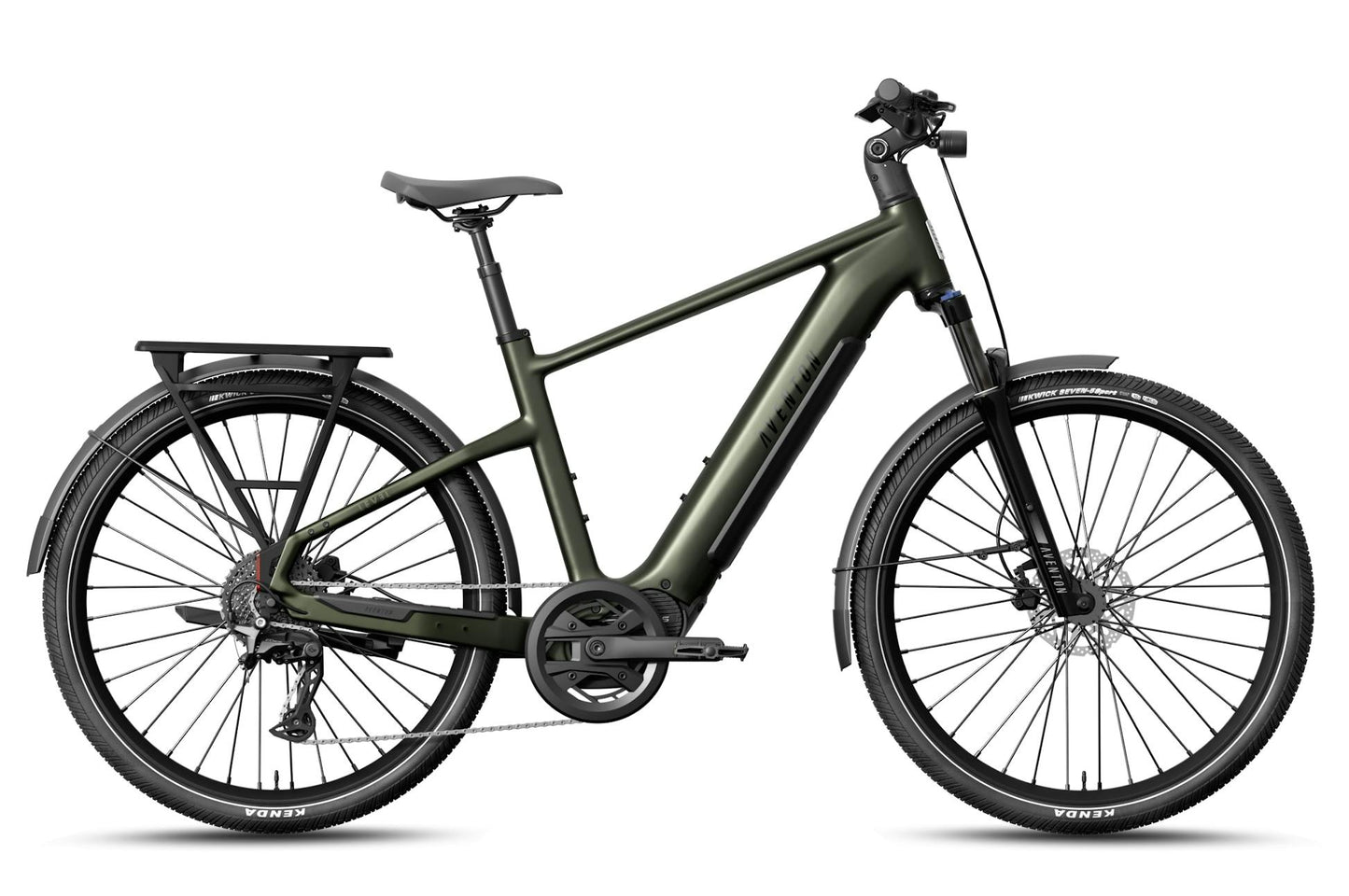

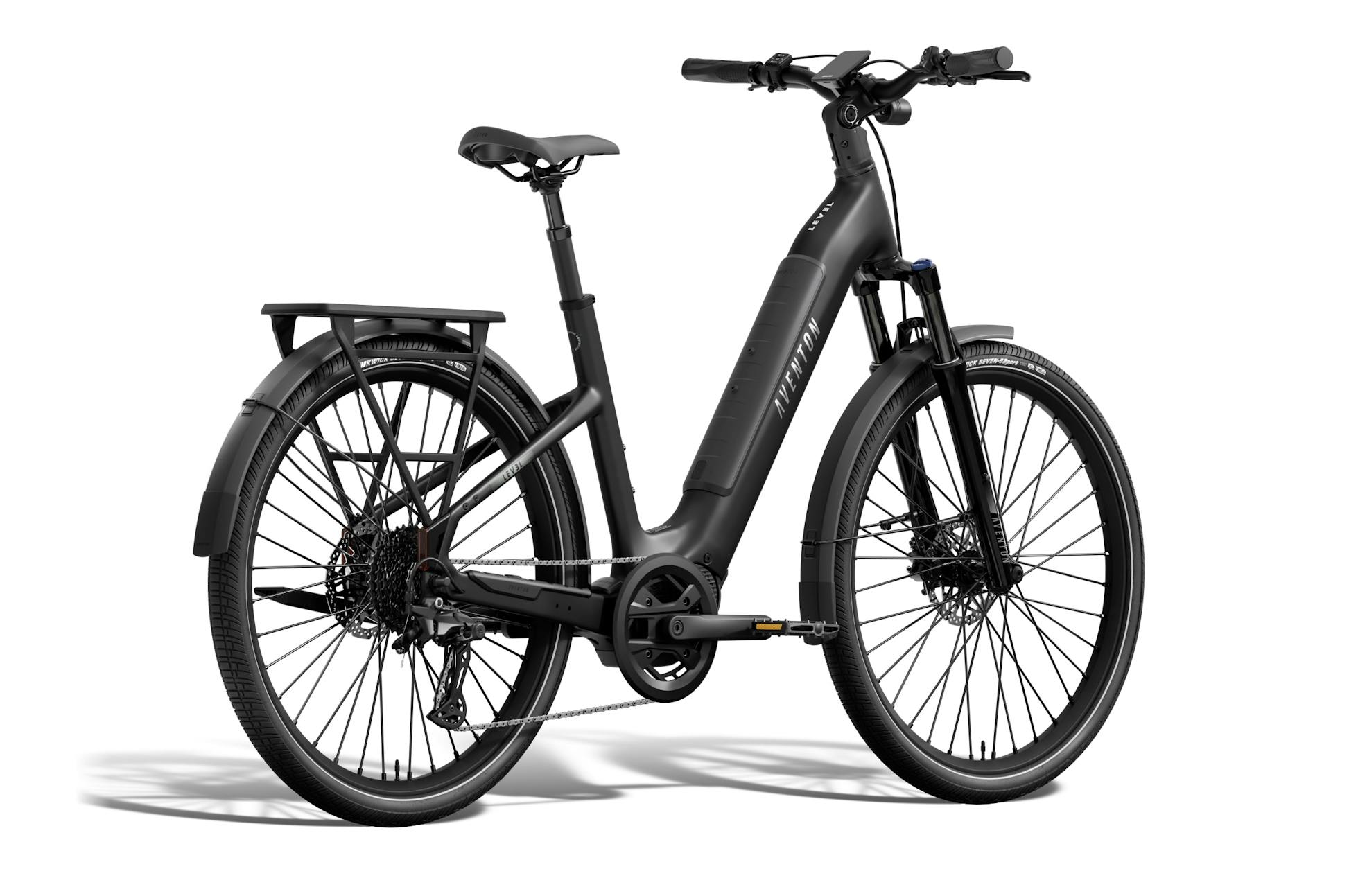

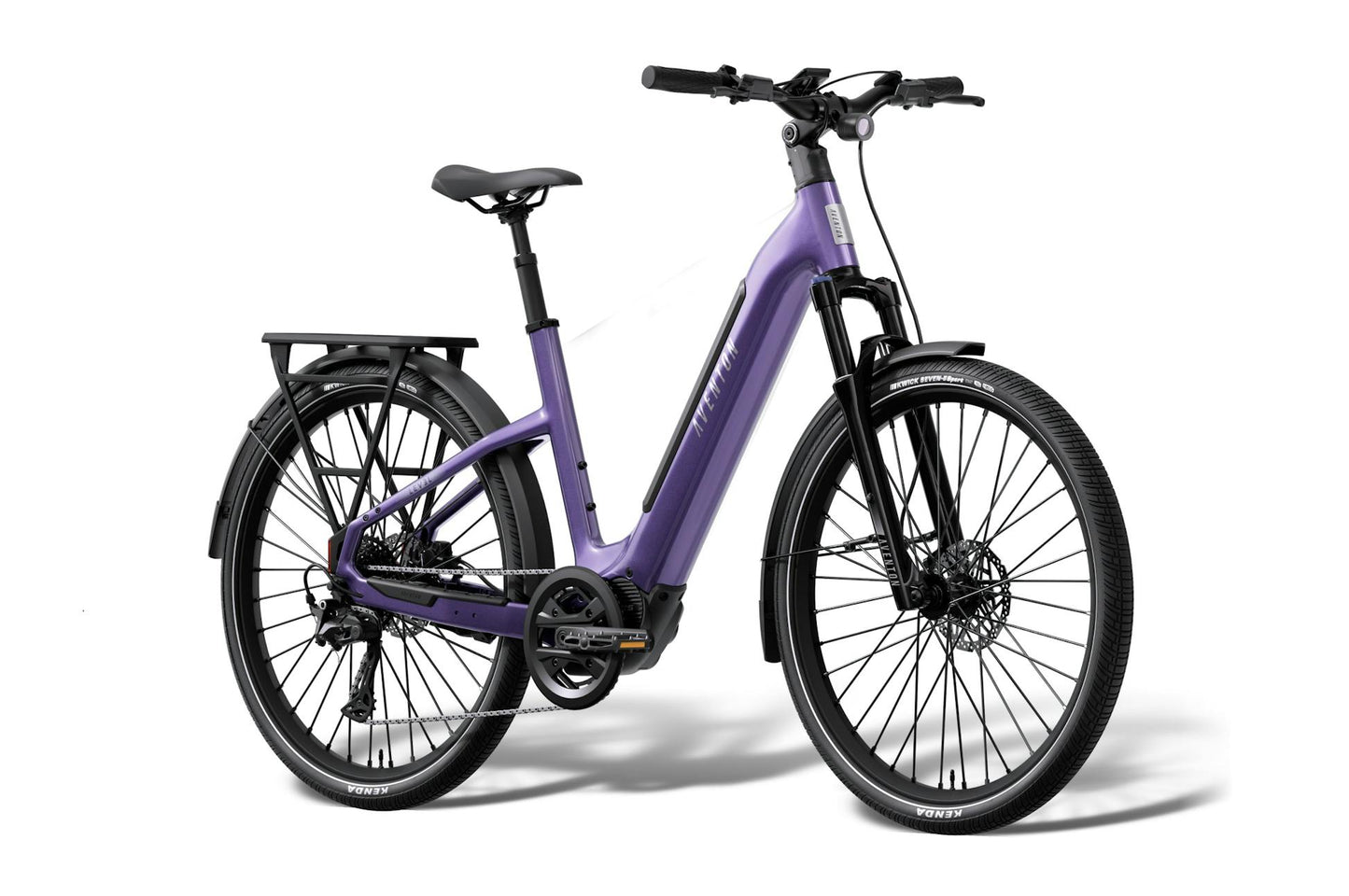

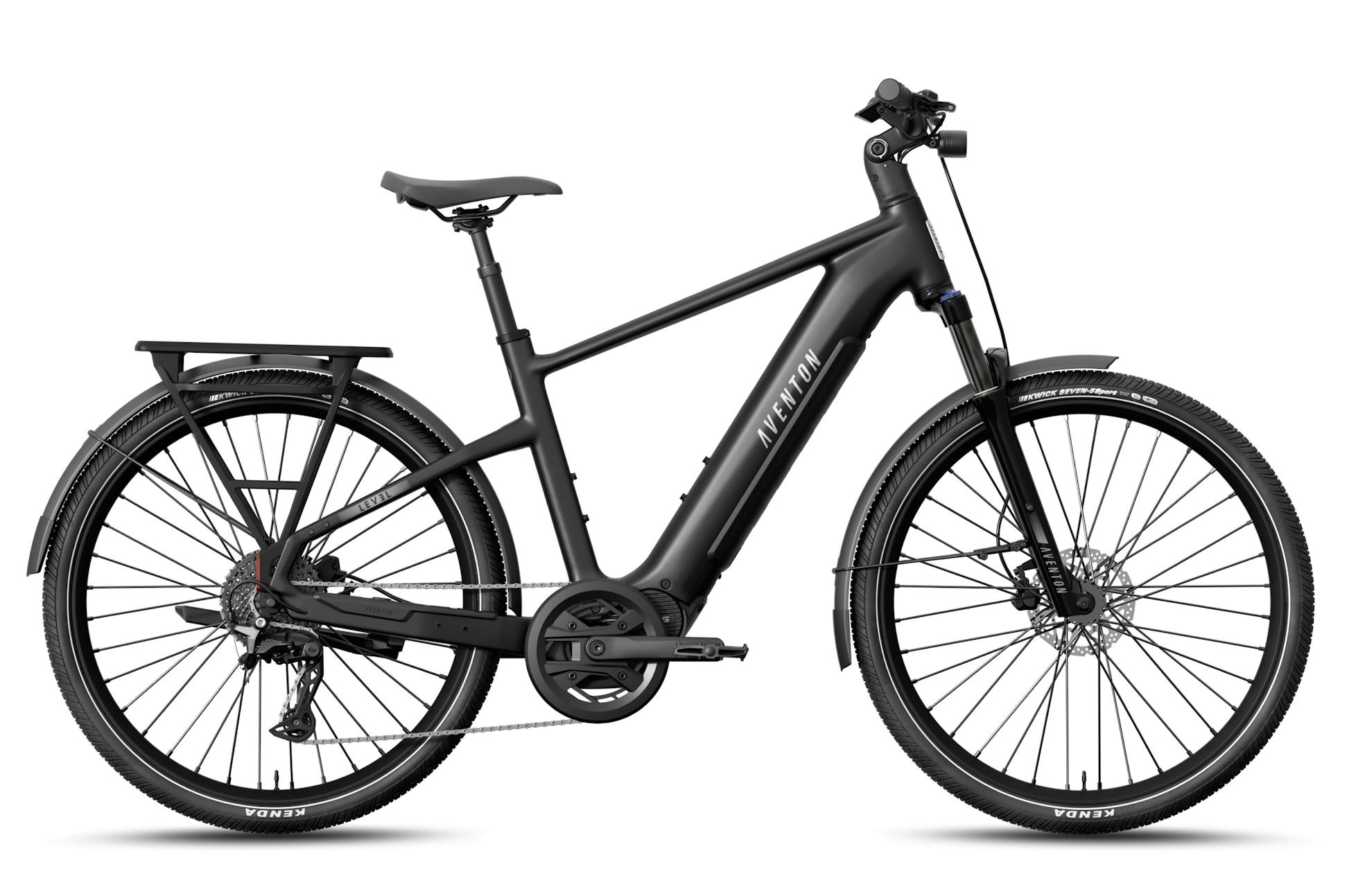

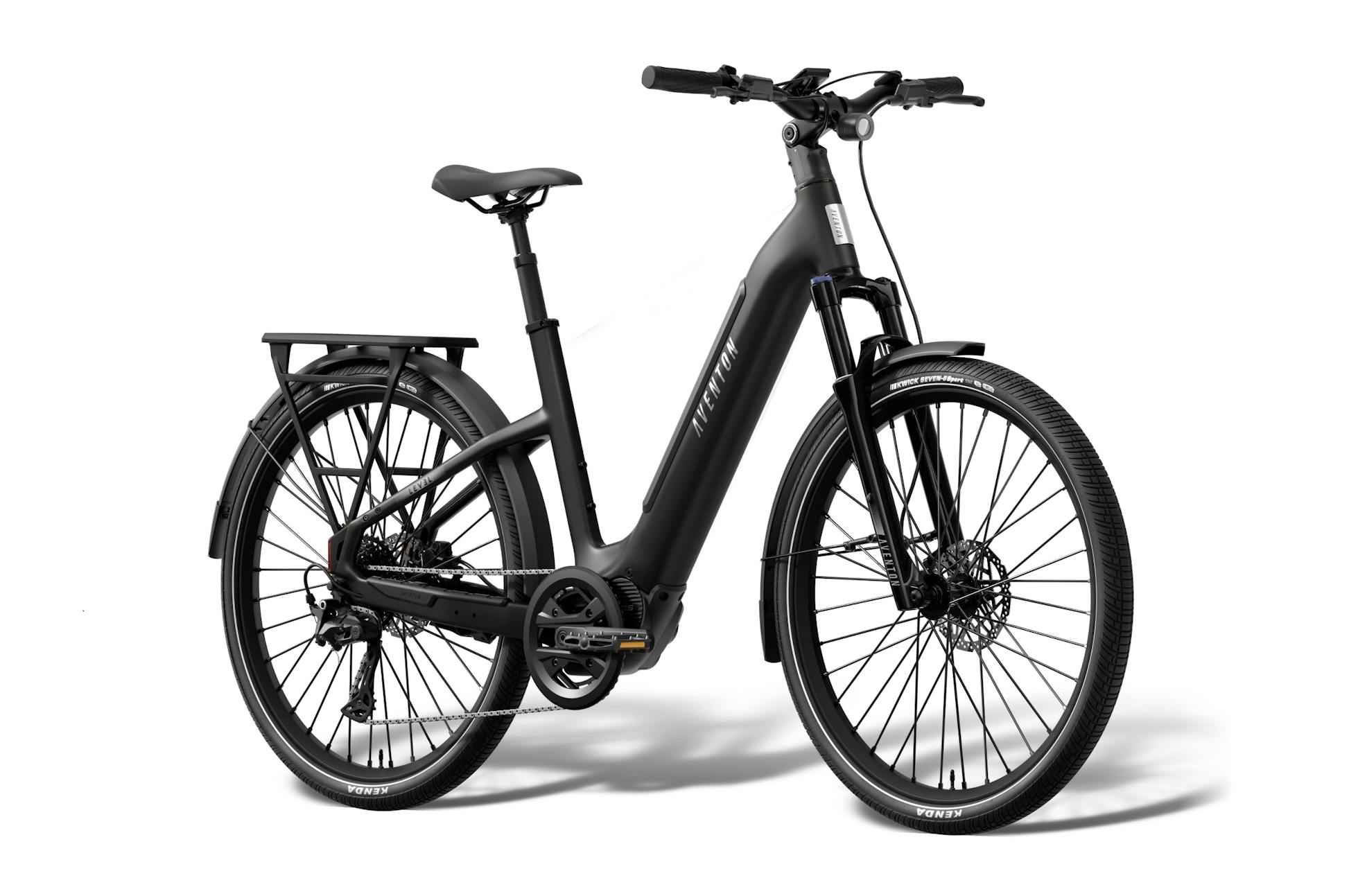

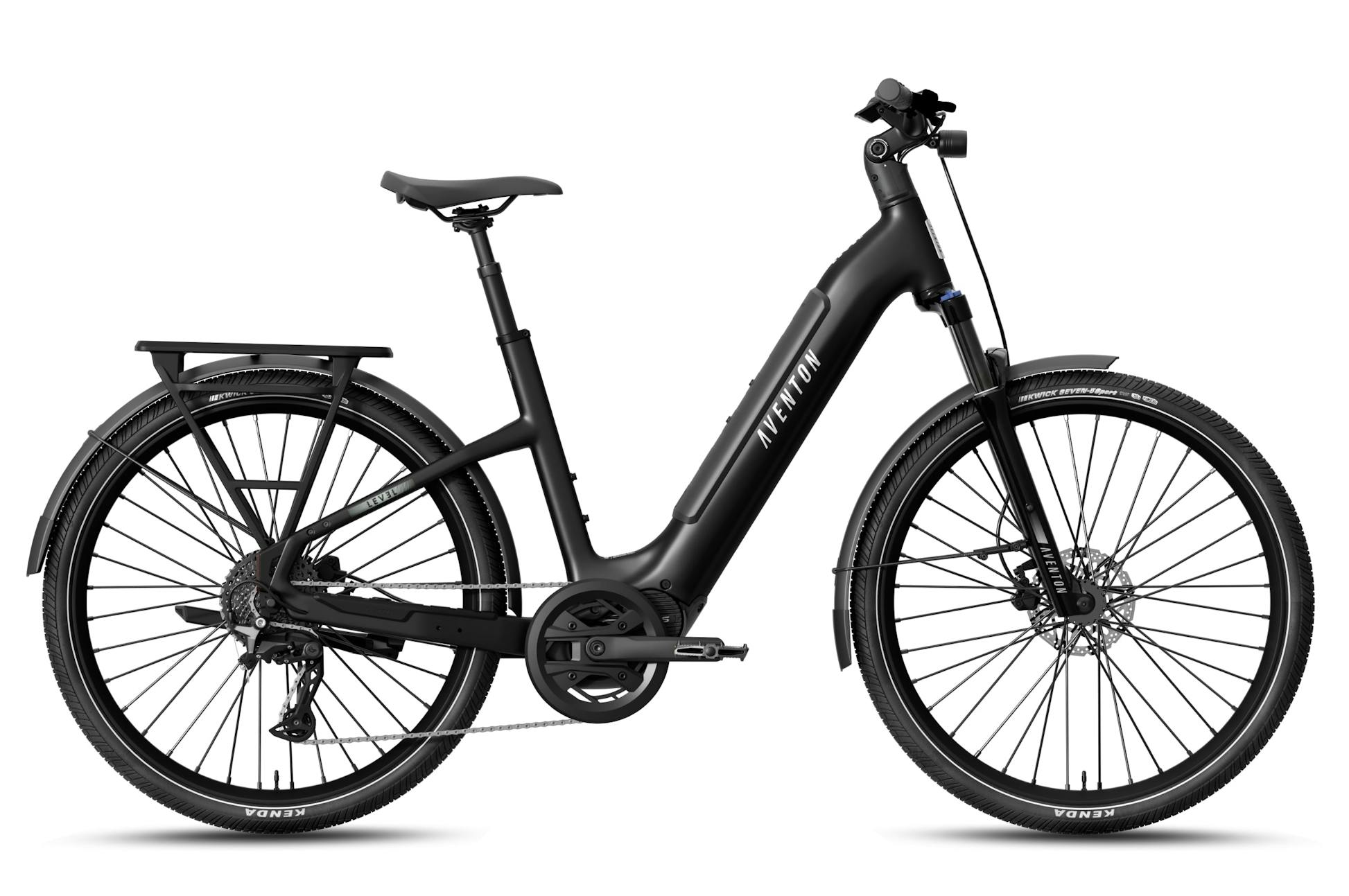

Aventon Level 4 ADV Mid Drive

The Level 4 ADV elevates the commuting experience with mid-drive performance and refined control. Powered by Aventon’s Ultro S motor with 100Nm of torque and paired with a Shimano CUES 10-speed drivetrain featuring Aventon’s E-Shifter and Autoshift technology, it delivers a natural pedaling feel and efficient power delivery across varied terrain. The ADV adds lightweight balance, responsive handling, and a premium feel, making it ideal for riders who want performance and sophistication without complexity. For those seeking the next level of connection, comfort, and control, the Level ADV represents the pinnacle of Aventon’s commuter design.

UL Safety Certified

+

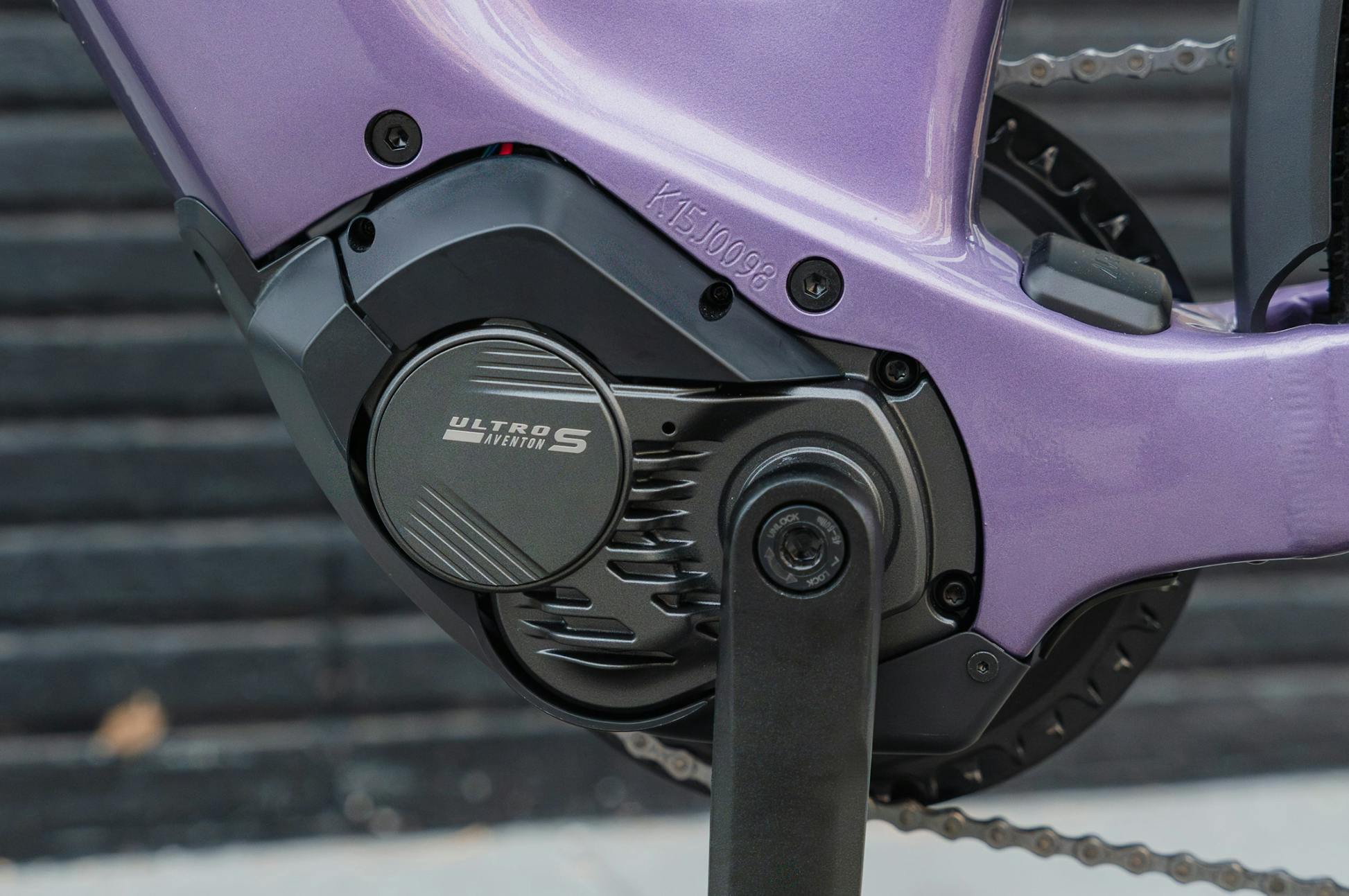

Ultro S Mid-Drive Motor (100Nm Torque)

Refined Power for Urban Adventure

+

800Wh Keyless Removable Battery

Easy Battery Access

+



Suspension Fork & Seatpost

100mm of Suspension and Suspension Seatpost

+

E-Shifter & Customizable AutoShift

Not Autopilot, But the Next Best Thing

+

Adjustable Stem

SPECIFICATIONS

General Info

Weight 61lbs

Total Weight Limit 300 lbs

Rider Height Regular - 4'11"-5'7". || Large - 5'7"-6'1"

Ebike Class Class 1 (Convertible to Class 2 and/or Class 3)

Water Resistance Bike - IPX6 // Motor - IP67

Range Up to 110 Miles

Safety Certifications UL Safety Certified
UL 2849

Battery Safety Certifications Certified to UL 2271

Frameset

Frame 6061 Aluminum

Fork 100mm Suspension Fork, 15x100mm

Rear Spacing 135mm

Fork Spacing 100mm

Wheelset Front Wheel

27.5" Double Wall Aluminum, 36H

Rear Wheel

27.5" Double Wall Aluminum, 36H

Tires Kenda K1052, 27.5x2.2"

Ebike System

Motor Aventon Ultro S

Motor Torque 100Nm

Motor Power 750W Peak

Display A280 Center Display

Battery 800Wh

Battery Weight 8.7lbs

Throttle Compatible, Not Included

Charger 42V 4A charger

Charging time from 0% to 100% 5 hours

Lights Front and rear lights integrated

Smart Features Uphill Start Assist, E-Shift, AutoShift, and Ride Tune

Brakes Front Brake

Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Rear Brake

Tektro HD-M3120 2-Piston Hydraulic Disc Brakes

Front Brake Rotor 180mm 6 bolt

Rear Brake Rotor 180mm 6 bolt

Brakes Hydraulic

Drivetrain

Rear Derailleur Shimano Cues 10-Speed

Chainring 48T

Crankset 165mm ISIS Splined

Pedals 9/16" Composite Platform

Shifter E-Shifter

Chain 9/10/11 speed 126L

Cassette Shimano Cues 10-Speed 11-39T

Cockpit

Saddle Aventon Saddle

Seatpost Aventon Suspension Post, 30.9mm, 50mm Travel, 400mm Length

Seatpost Clamp 34.9mm

Handlebars 31.8mm, 680mm  Width, 30mm Rise

Grips Aventon Lock on grips

Included Accessories

Rear Rack

Included

Fenders

Included

Integrated Lights Included
